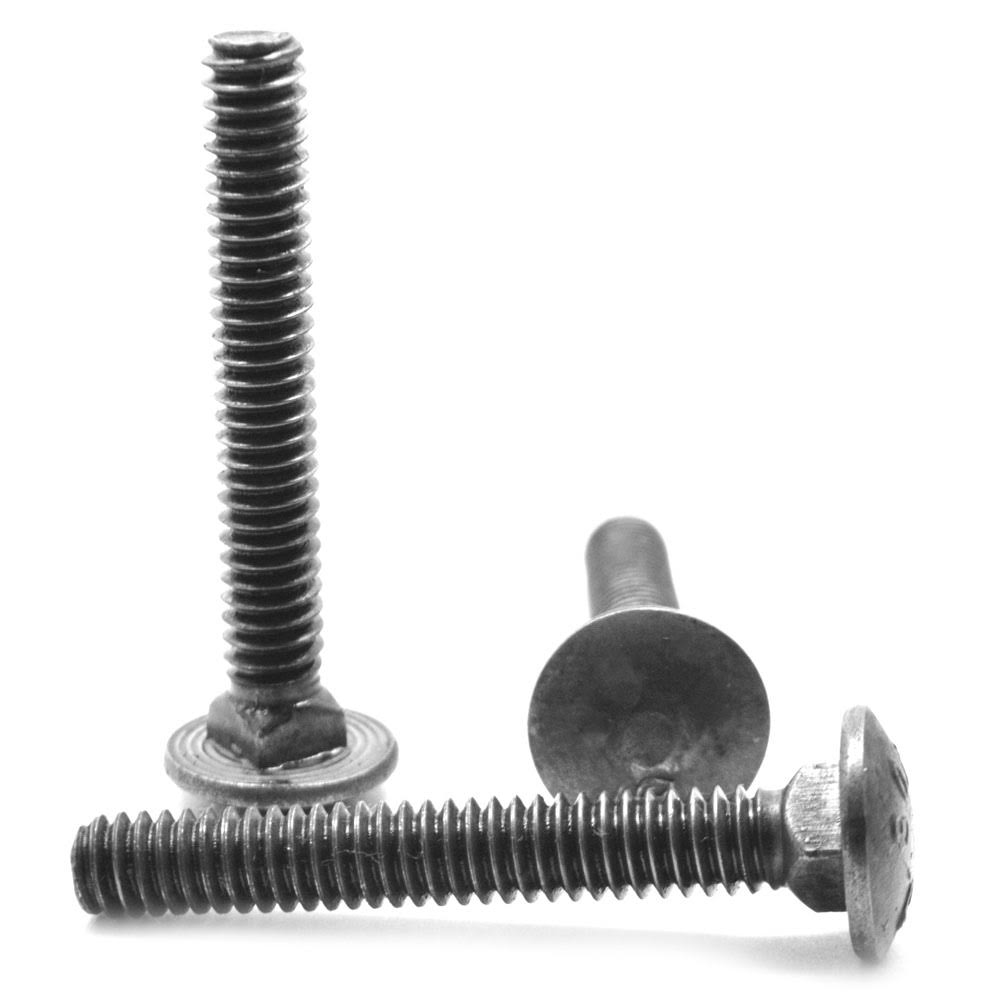

5/8x22-11 x 9 1/2x226x22THD Coarse Thread Grade A Carriage Bolt Low Carbon Steel P316
Sale price
$25.50
Regular price $91.49
Skip to product information
Part #: 0000-129529. Buy as few as 30 pcs. Discounts on larger quantities. PRODUCT SPECIFICATIONS Part #: 0000-129529 Fastener Type: Carriage Bolt Size Description: 5/8'-11 x 9 1/2'6'THD UNDER-SIZED Diameter/Nominal Size: 5/8' Length: 9 1/2' Head Diameter: 1.219-1.344' Head Height: 0.313-0.344' Neck Across Square/Diameter: 0.616-0.642' Neck Height: 0.313-0.344' Thread Pitch: 11 Thread Pitch Type: Coarse Thread Direction: Right Thread Coverage: 6' THD System of Measurement: Inch Grade: A (2) Material: Low Carbon Steel Finish: Plain Finish (No Plating) Standards Met: A307 Average Piece Weight: 0.7407500 lbs. Carriage bolts are Ideal for use in square holes in wood-to-wood and wood-to-metal fastening; bolt has a square neck that prevents it from turning once screwed in. When trying to determine the length of the item, measure from just under the head of the bolt.
5/8x22-11 x 9 1/2x226x22THD Coarse Thread Grade A Carriage Bolt Low Carbon Steel P316
Sale price
$25.50
Regular price $91.49
Shipping calculated at checkout.
