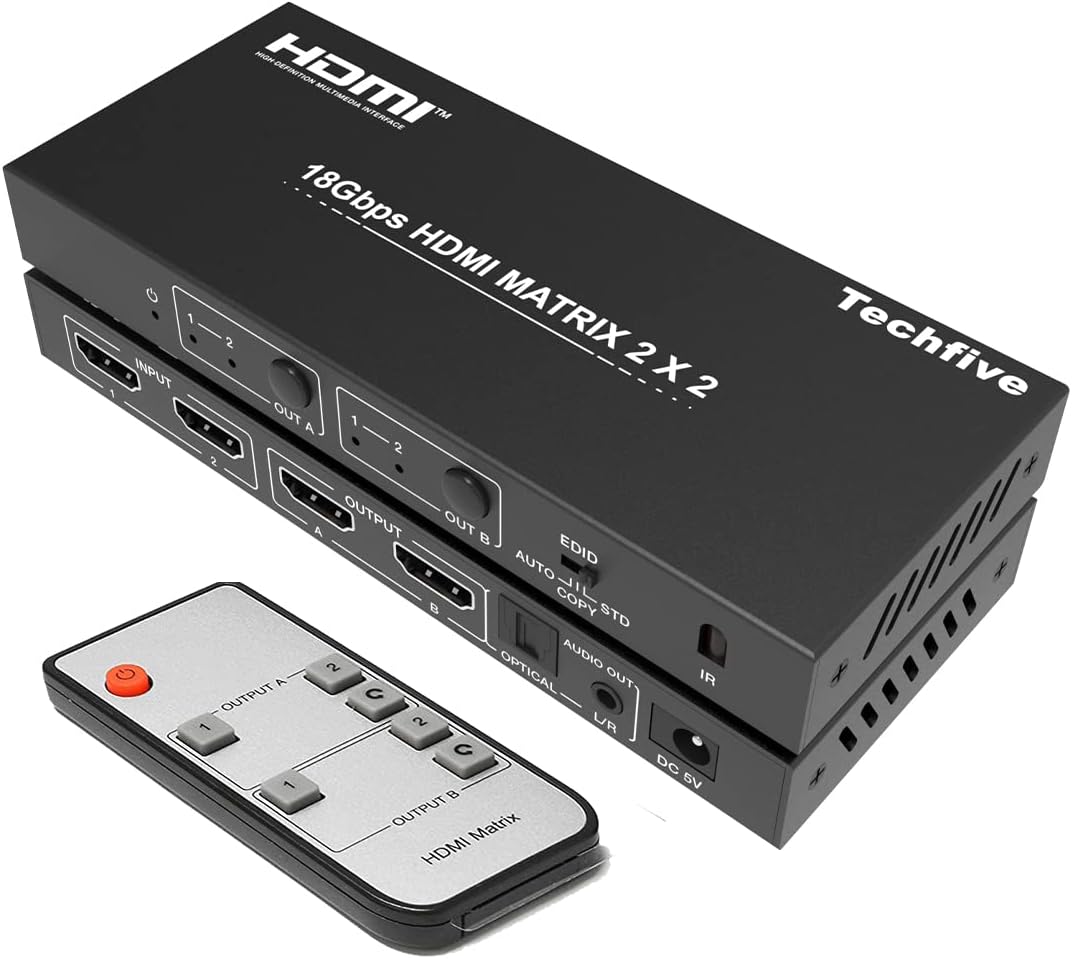

4K@60HZ HDMI Switcher 2 in 2 Out Pack of 2 S70624
4K@60HZ HDMI Switcher 2 in 2 Out Pack of 2 S70624

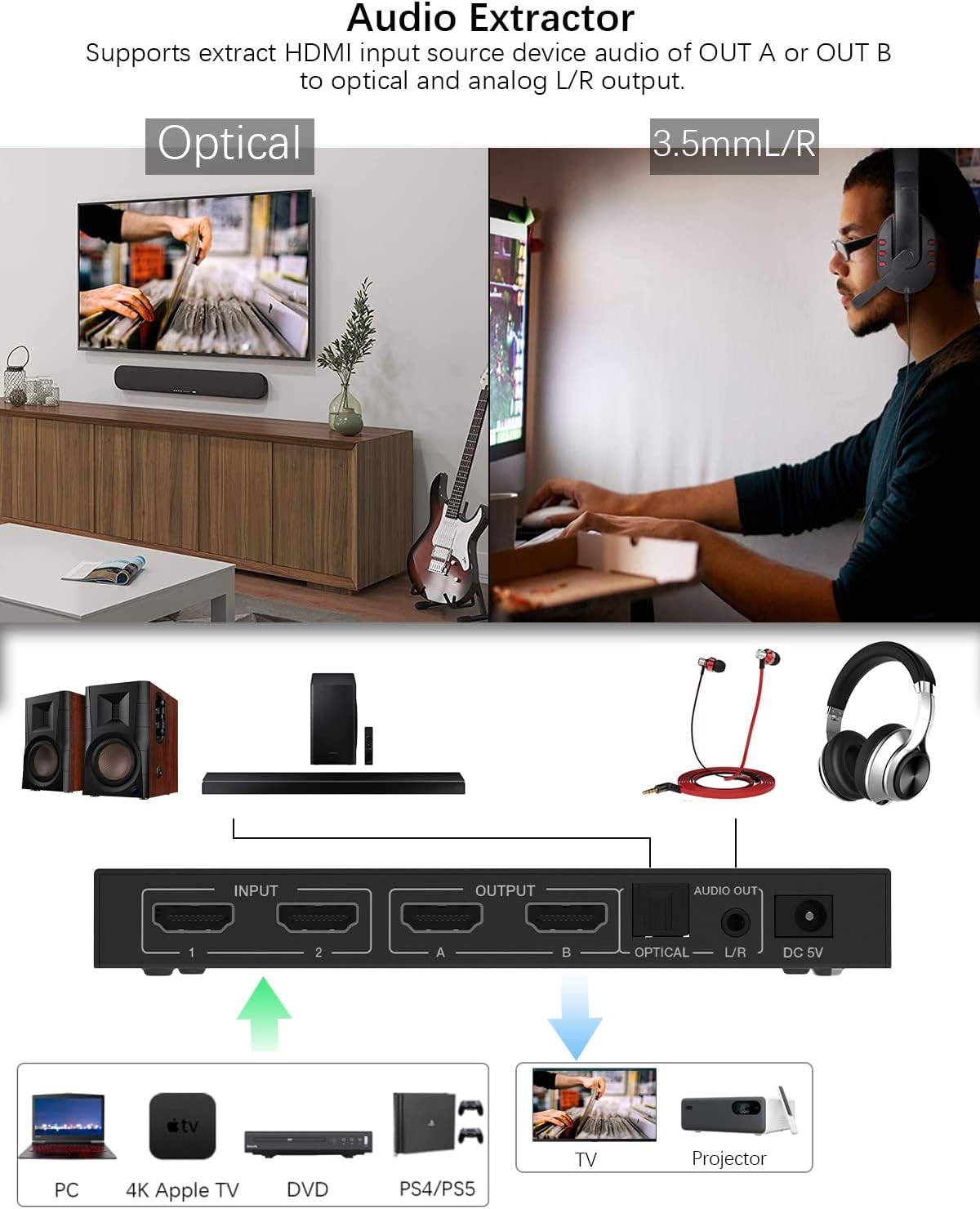

With Audio extractor, Sound Enjoyment: Compare with others HDMI matrix, Techfive HDMI matrix supports two ways to audio extracting, OPTICAL and 3.5mm jack (L/R) audio output.HDMI Audio Formats supports PCM2.0/5.1/7.1CH, Dolby 5.1, DTS5.1, Dolby-TrueHD, DTS-HD. Optical Audio Formats support M[2.0/2.1]CH, Dolby 5.1, Dolby True HD, Dolby DD+, DTS 5.1, DTS-ES 6, DTS-HDMA 5.1, DTS HD-HRA 5.1. L/R Audio Formats supports Analog stereo PCM 2.0
Flexible Control: Techfive HDMI switch splitter hub supports 2 way to switch the HDMI signal,via panel buttons and convenient IR remote control, the corresponding LED indicator on front panel will be illuminated. Easy to switch.Convenient and easy, just enjoy happy time with family and friends. No degradation in audio quality.
HDMI 2.0b, HDCP2.2, HDR10+: Provide excellent show, no loss of quality. Video resolution is up to 4K2K@50/60Hz (4:4:4). This HDMI hub has wide Compatibility, compatible with Roku Stick/Fire Stick, PS4/PS3/PS5, Laptop/PC, Blu-Ray and DVD players, Xbox, Nintendo Switch, etc. Please Note: If you connect to PS5, IF it flick, please set the resolution of the PS5 to 4K@60HZ.

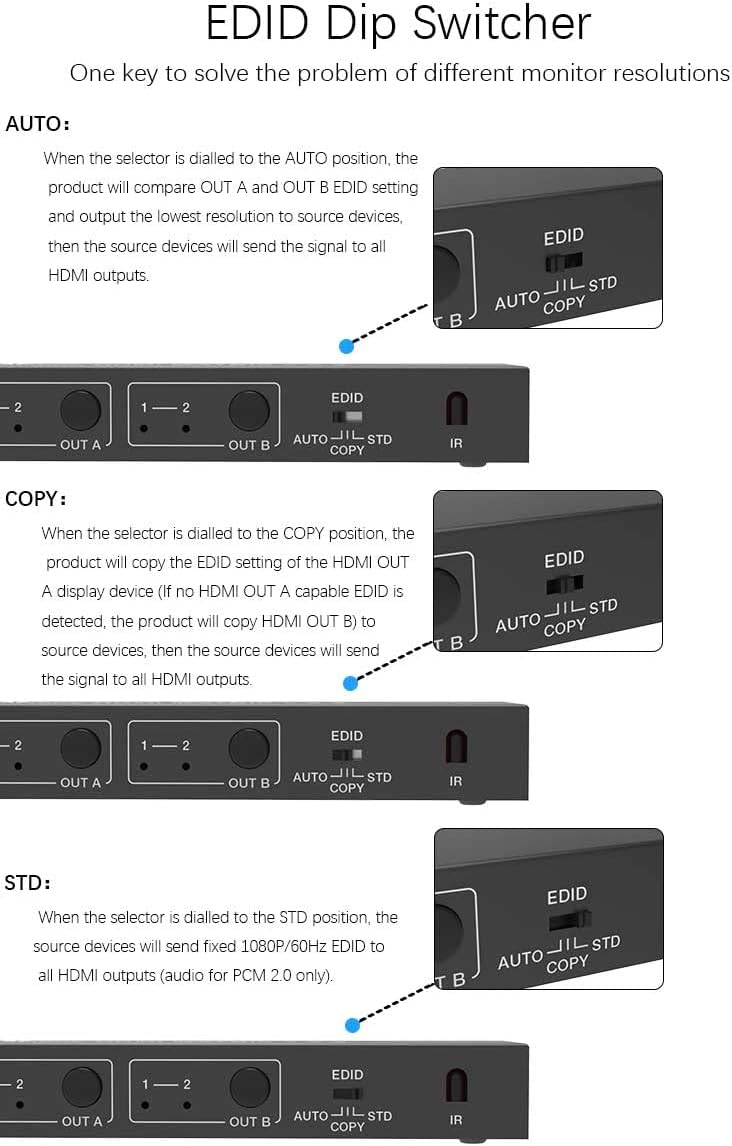

Three modes of EDID setting (AUTO, COPY and STD). Compare with others HDMI splitter switcher, the Techfive matrix Switcher can easily solve the problem that dual-screen simultaneous display cannot be supported due to different display resolutions. If you have any question about this 2 ports HDMI splitter switcher, please feel free to contact us, we are always ready to help you! Package Contents include 1×HDMI Matrix Switcher,1× 5V/1A Power Adapter, 1× Matrix IR Remote, 1× User Manual
Feature
1.HDMI 2.0b, HDCP2.2,Support 18Gbps video bandwidth.
2.Wide compatibility for more devices.
3.UHD 4K@60HZ, crisper image, offer you a journey of immersive experience.

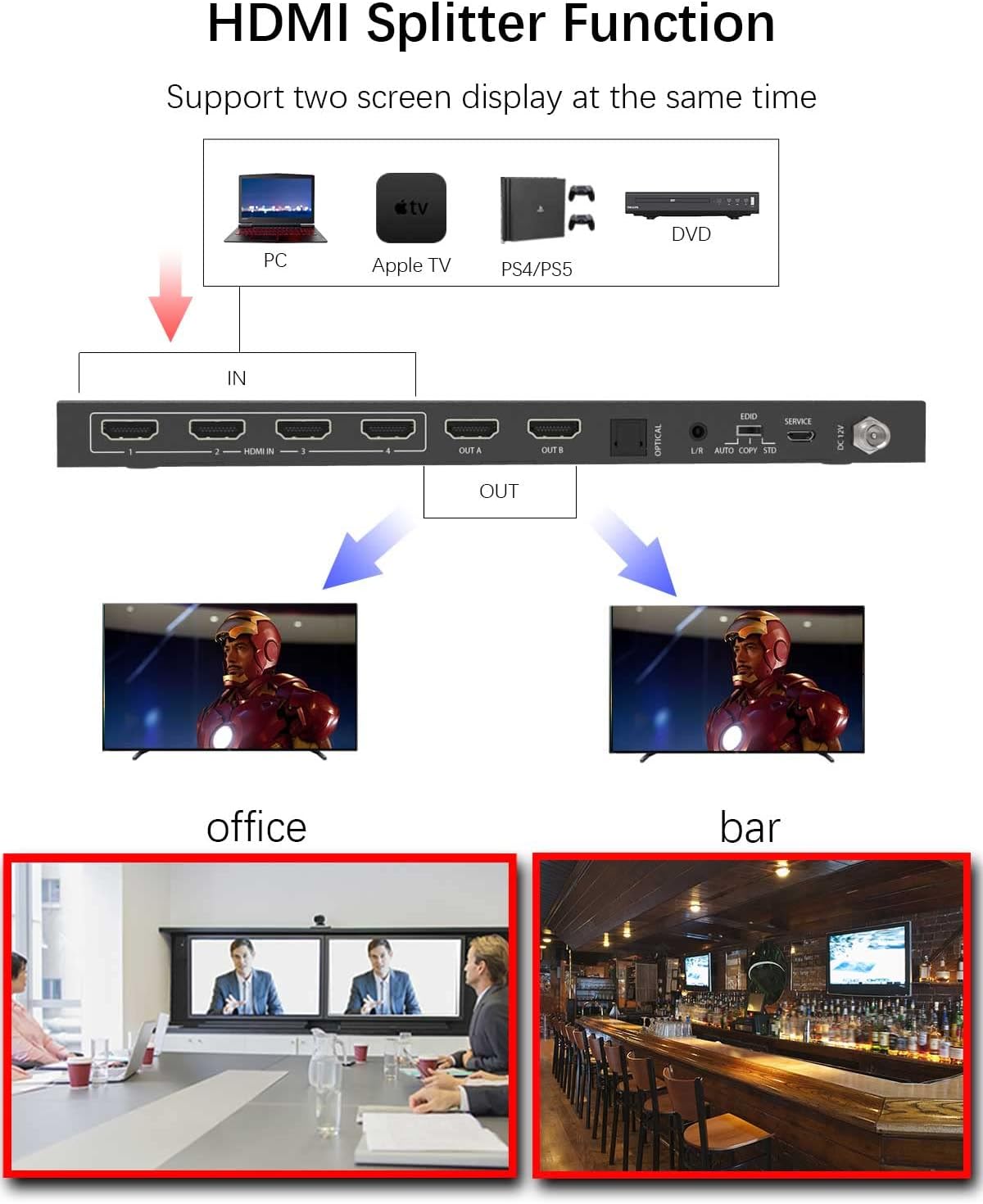

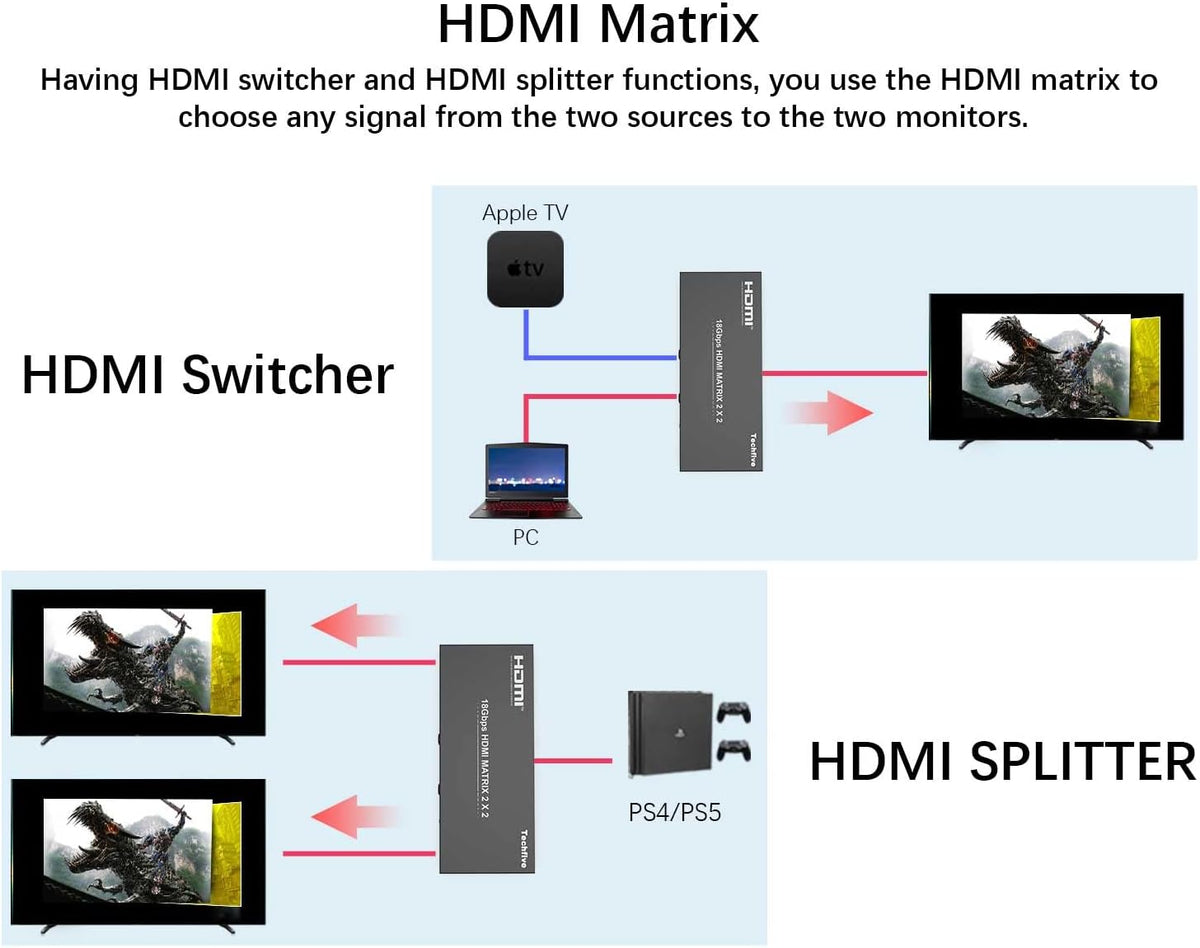

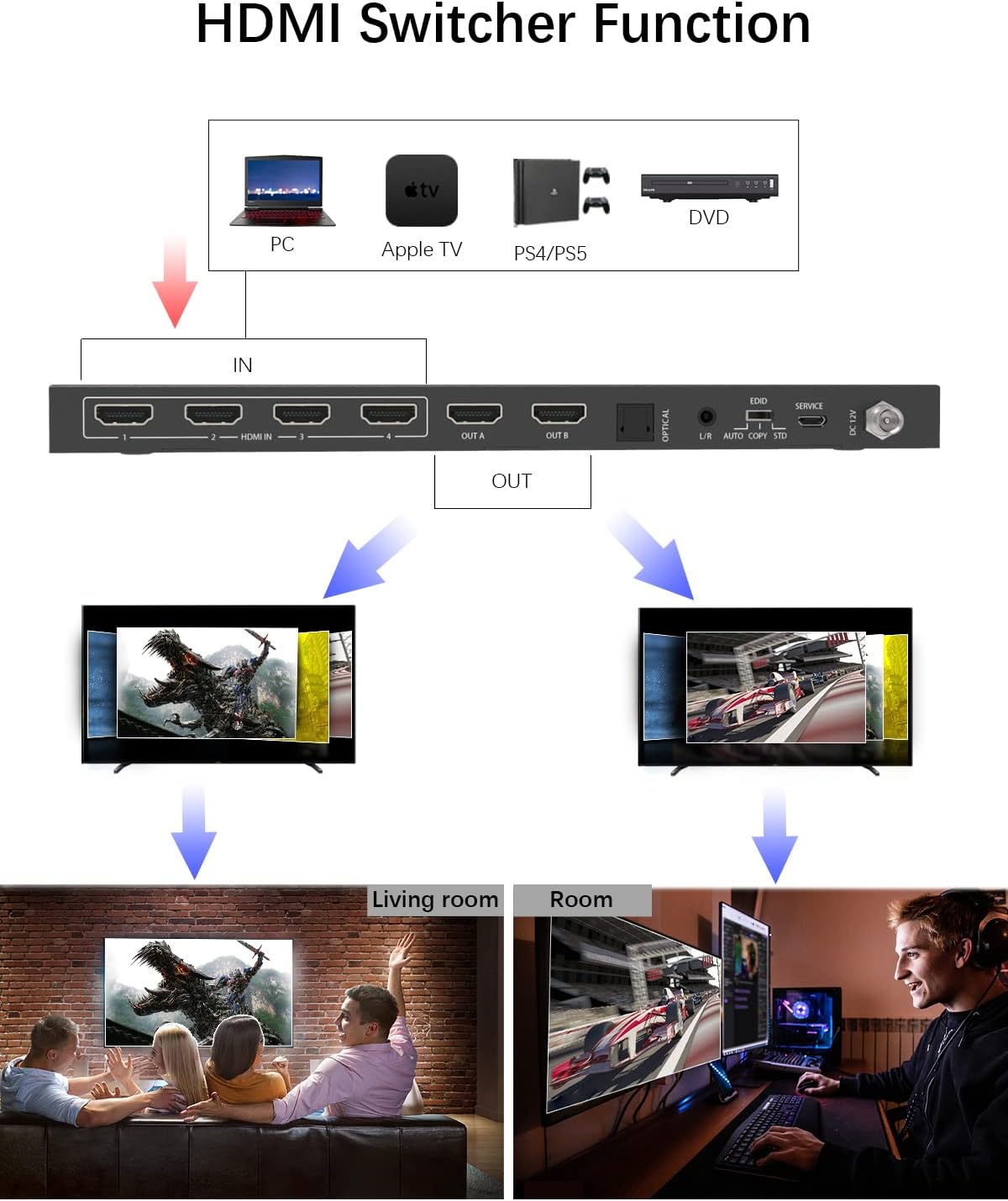

4.Support 2 in 1 out HDMI Switcher function and 1 in 2 out HDMI Splitter function.
5.With OPTICAL + 3.5mm JACK audio extractor, supports connection of multiple audio devices.
6.Metal shell can efficiently dissipate the heat to ensure durability and safe usage.
7.Two way to switch, remote control and manual button.
8.ESD protection, more safety. 9.Ideal for home entertainment, set up a home theater, work efficiently, entertainment and more.
Other Specifications
HDMI Audio Formats: PCM2.0/5.1/7.1CH, Dolby 5.1, DTS5.1, Dolby-TrueHD, DTS-HD
Optical Audio Formats:LPCM[2.0/2.1]CH, Dolby 5.1, Dolby True HD, Dolby DD+, DTS 5.1, DTS-ES 6, DTS-HDMA 5.1, DTS HD-HRA 5.1
L/R Audio Formats: Analog stereo PCM 2.0
Color Space: RGB, YCbCr 4:4:4, YCbCr 4:2:2, YCbCr 4:2:0
High Dynamic Range: HDR,HDR 10+,HLD,DOLBY VISION
Color Depth: 8-bit, 10-bit, 12-bit
Support 3D
FAQ
Q: Does this product require an HDMI cable length for the connection interface?
A: According to HDMI input / output cable length test, the longest HDMI cabel for 4K2K@60Hz / 8 bit YCbCr 4:4:4 is 5m, the longest HDMI cable for 4K2K@ 30Hz / 8-bit is 10m, the longest HDMI cable for 1080p@60Hz / 8-bit is 15m. The use of “Premium High Speed HDMI” cable is highly recommended.
For using the IR remote, the best distance is 0~7m and the best angle is ± 45°.
